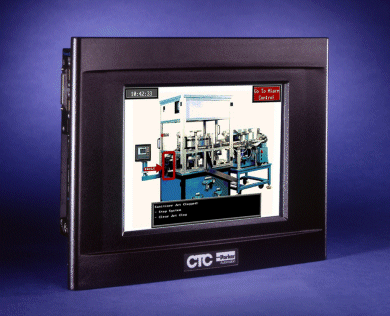

P1-10" PowerStation
The P1-10" is an economical
10" HMI workstation.
The P1-10" PowerStation line features a 10", Pentium
166 processor package. Like the other P1 products, this economical
10" unit is available with a color or mono display option with
PC/104 expansion. The P1-10" comes bundled with Interact core modules
(panel tools, graphics, alarming, and networking), and can also be bundled
with any of the Interact optional modules.
Features and Specifications
|
|
|
Includes Interact Runtime:
PTM, GMM, AMM, and NET. Additional modules and MachineLogic PC-Based
Control Software optional.
|
|
Display
|
|
Type
|
Flat Panel
|
|
Backlight
|
Cold Cathode Fluorescent Tube
|
|
Monochrome/Color
|
Mono - STN; Color - TFT
|
|
Resolution
|
VGA (640 x 480)
|
|
Size
|
9.4" (239 mm) Diag. (Mono/STN)
- 110 NITS
10.4" (264mm) Diag. (Color/TFT)
|
|
CPU
|
|
Pentium 166 MHz
|
|
System
Memory
|
|
Standard
|
32 MB
|
|
Maximum
|
256 MB
|
|
Storage
Memory
|
|
Compact FLASH
(Type II Connectors)
|
16 MB Compact FLASH (128 MB max)
|
|
Floppy Disk Drive
|
N/A
|
|
Hard Drive
|
N/A
|
|
CD ROM
|
N/A
|
|
Video Memory
|
2 MB High Speed SDRAM
|
|
I/O
Ports
|
|
Serial
|
(1) RS232/422/485
(2) RS232 |
|
Ethernet
|
10/100 Base-T with RJ45 connector
|
|
Parallel
|
(1) 25-Pin D-sub connector
(supports Bi-directional SSP/SPP/ECP) |
|
Expansion Slots
|
1 PC/104 Standard, up
to 3 PC/104 cards supported |
External Video
|
N/A |
|
USB
|
N/A |
|
User
Interface
|
|
Function Key
|
Pop-Up On Screen |
|
Numeric Key
|
Pop-Up On Screen |
|
Touchscreen
|
Analog Resistive 8-wire |
|
Select Key
|
N/A |
|
Cancel Key
|
N/A |
|
Keyboard Port
|
1 PS/2 Keyboard Port |
|
Mouse
|
1 PS/2 Mouse Port
|
|
Package
|
|
Designed for
|
NEMA 4/4X
|
|
Temperature Range
|
0-50 C
|
|
Rel. Humidity (non-condensing)
|
5-95%
|
|
Vibration
|
10-500 Hz .5grms
(Random-Operational-HD)
10-500 Hz, 1grms
(Random-Operational-CompactFlash) |
|
Shock
|
10G, 11 msec (operating)
30G, 11 msec (non-operating) |
|
Weight
|
13.8 lbs. (6.3 Kg)
|
|
Overall Size (HxWxD)
|
11.02" x 13.78" x 4.29"
|
|
Power Requirements
|
|
AC
|
90-250 VAC; 50/60 Hz; (external -
purchase separately)
|
|
Maximum Power Consumption
|
110 Watts max.
|
|
DC
|
18-28 VDC Standard
|
| Maximum Power Consumption
|
78 Watts max.
|
|
Agency Approval
|
|
CE; UL/CUL; Class
I Division 2
|
|
