Software
|
| Includes Interact Runtime: PTM, GMM, AMM, and NET.
Additional software modules are optional |
| Display |
| Type |
Flat Panel |
| Backlight |
Cold Cathode Fluorescent Tube |
| Color |
Color - STN
Color - TFT (8.0" & 10.4") |
| Resolution |

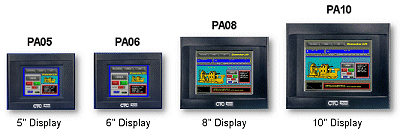

PA05/06 - QVGA (320x240)
PA08/10 - VGA (640x480) |
| Size |
4.7" (120mm) Diag.
(Color STN) |
5.7" (145mm) Diag.
(Color STN) |
8.0" (203mm) Diag.
(Color STN, TFT opt.) |
10.4" (264mm) Diag.
(Color TFT) |
CPU
|
200 MHz
|
System Memory
|
32 MB
|
Storage Memory
|
| Compact FLASH (Type II Connectors) |
32 MB Compact FLASH |
| Floppy Disk Drive |
N/A |
| Hard Drive |
N/A |
I/O Ports
|
| Serial |
(1) RS232/485 |
| |
(1) RS232/422/485 |
| Ethernet |
10/100 Base-T (RJ45 port) |
| Parallel |
N/A |
| Expansion Slots |
N/A |
| External Video |
N/A |
User Interface
|
| Function Key |
Pop-Up On Screen |
| Numeric Key |
Pop-Up On Screen |
| Touchscreen |
Analog Resistive 8-wire |
| Select Key |
N/A |
| Cancel Key |
N/A |
| Keyboard Port |
1 PS/2 Keyboard Port |
| Mouse |
1 PS/2 Mouse Port |
Package
|
| Designed for |
NEMA 4/4X |
| Temperature Range |
0-50 C |
| Rel. Humidity (non-condensing |
5-95% |
| Vibration |
10-500 Hz .5grms
(Random-Operational-HD)
10-500 Hz, 1grms
(Random-Operational-CompactFlash) |
| Shock |
10G, 11 msec (operating)
30G, 11 msec (non-operating) |
| Weight |
PA05 - 2.14 lbs. (.98 Kg)
PA06 - 2.24 lbs. (1.02 Kg)
PA08 - 3.78 lbs. (1.72 Kg)
PA10 - 8.3 lbs. (3.78 Kg) |
| Overall Size (HxWxD) |
PA05/06 - 6.0" x 7.4" x 2.26"
PA08 - 7.6" x 10.2" x 2.53"
PA10 - 11" x 13.78" x 2.93" |
Power Requirements
|
| AC |
90-260 VAC; 50/60 Hz;
(ext. opt)
78 Watts max |
| DC Maximum Power Consumption |
12/24 VDC, 18 Watts |
Agency Approval
|
CE; UL/CUL; Class 1 Division 2 |
